Težave s enc28j60 in PIC 16F877A

www.elektronik.si Seznam forumov -> Microchip PIC

Poglej prejšnjo temo :: Poglej naslednjo temo

Avtor

Sporočilo

luksorzi
Član
Član

Pridružen-a: Pet 24 Jun 2011 18:32
Prispevkov: 105
Aktiv.: 0.62
Kraj: Brezovica pri Ljubljani

Objavljeno: Tor Apr 10, 2012 6:00 pm Naslov sporočila: Težave s enc28j60 in PIC 16F877A

Imam enc26j60 modul:
http://www.ebay.com/itm/ws/eBayISAPI.dll?ViewItem&item=260747627291

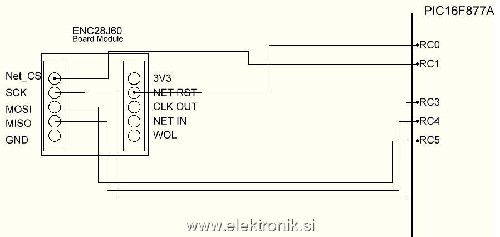

Spodaj sem nalepil shemo, ki sem jo staknil v pomoči od programa mikroC in pa kako sem pic povezal z modulom. Tam sem tudi dobil program:

Koda:

#define Spi_Ethernet_HALFDUPLEX 0
#define Spi_Ethernet_FULLDUPLEX 1

/************************************************************
* ROM constant strings
*/
const unsigned char httpHeader[] = "HTTP/1.1 200 OK\nContent-type: " ; // HTTP header
const unsigned char httpMimeTypeHTML[] = "text/html\n\n" ; // HTML MIME type
const unsigned char httpMimeTypeScript[] = "text/plain\n\n" ; // TEXT MIME type
unsigned char httpMethod[] = "GET /";
/*
* web page, splited into 2 parts :
* when coming short of ROM, fragmented data is handled more efficiently by linker
*
* this HTML page calls the boards to get its status, and builds itself with javascript
*/
const char *indexPage = // Change the IP address of the page to be refreshed
"<meta http-equiv=\"refresh\" content=\"3;url=http://192.168.1.60\">\
<HTML><HEAD></HEAD><BODY>\
<h1>PIC + ENC28J60 Mini Web Server</h1>\
<a href=/>Reload</a>\
<script src=/s></script>\
<table><tr><td valign=top><table border=1 style=\"font-size:20px ;font-family: terminal ;\">\
<tr><th colspan=2>ADC</th></tr>\
<tr><td>AN2</td><td><script>document.write(AN2)</script></td></tr>\
<tr><td>AN3</td><td><script>document.write(AN3)</script></td></tr>\
</table></td><td><table border=1 style=\"font-size:20px ;font-family: terminal ;\">\
<tr><th colspan=2>PORTB</th></tr>\
<script>\
var str,i;\
str=\"\";\
for(i=0;i<8;i++)\
{str+=\"<tr><td bgcolor=pink>BUTTON #\"+i+\"</td>\";\
if(PORTB&(1<<i)){str+=\"<td bgcolor=red>ON\";}\
else {str+=\"<td bgcolor=#cccccc>OFF\";}\
str+=\"</td></tr>\";}\
document.write(str) ;\
</script>\
" ;

const char *indexPage2 = "</table></td><td>\
<table border=1 style=\"font-size:20px ;font-family: terminal ;\">\
<tr><th colspan=3>PORTD</th></tr>\
<script>\
var str,i;\
str=\"\";\
for(i=0;i<8;i++)\
{str+=\"<tr><td bgcolor=yellow>LED #\"+i+\"</td>\";\
if(PORTD&(1<<i)){str+=\"<td bgcolor=red>ON\";}\
else {str+=\"<td bgcolor=#cccccc>OFF\";}\
str+=\"</td><td><a href=/t\"+i+\">Toggle</a></td></tr>\";}\
document.write(str) ;\
</script>\
</table></td></tr></table>\
This is HTTP request #<script>document.write(REQ)</script></BODY></HTML>\
" ;

/***********************************
* RAM variables
*/
unsigned char myMacAddr[6] = {0x00, 0x14, 0xA5, 0x76, 0x19, 0x3f} ; // my MAC address
unsigned char myIpAddr[4] = {192, 168, 1, 60 } ; // my IP address
unsigned char gwIpAddr[4] = {192, 168, 1, 1 } ; // gateway (router) IP address
unsigned char ipMask[4] = {255, 255, 255, 0 } ; // network mask (for example : 255.255.255.0)
unsigned char dnsIpAddr[4] = {192, 168, 1, 1 } ; // DNS server IP address

unsigned char getRequest[15] ; // HTTP request buffer
unsigned char dyna[30] ; // buffer for dynamic response
unsigned long httpCounter = 0 ; // counter of HTTP requests

/*******************************************
* functions
*/

/*
* put the constant string pointed to by s to the ENC transmit buffer.
*/
/*unsigned int putConstString(const char *s)
{
unsigned int ctr = 0 ;

while(*s)
{
Spi_Ethernet_putByte(*s++) ;
ctr++ ;
}
return(ctr) ;
}*/
/*
* it will be much faster to use library Spi_Ethernet_putConstString routine
* instead of putConstString routine above. However, the code will be a little
* bit bigger. User should choose between size and speed and pick the implementation that
* suites him best. If you choose to go with the putConstString definition above
* the #define line below should be commented out.
*
*/
#define putConstString Spi_Ethernet_putConstString

/*
* put the string pointed to by s to the ENC transmit buffer
*/
/*unsigned int putString(char *s)
{
unsigned int ctr = 0 ;

while(*s)
{
Spi_Ethernet_putByte(*s++) ;

ctr++ ;
}
return(ctr) ;
}*/
/*
* it will be much faster to use library Spi_Ethernet_putString routine
* instead of putString routine above. However, the code will be a little
* bit bigger. User should choose between size and speed and pick the implementation that
* suites him best. If you choose to go with the putString definition above
* the #define line below should be commented out.
*
*/
#define putString Spi_Ethernet_putString

/*
* this function is called by the library
* the user accesses to the HTTP request by successive calls to Spi_Ethernet_getByte()
* the user puts data in the transmit buffer by successive calls to Spi_Ethernet_putByte()
* the function must return the length in bytes of the HTTP reply, or 0 if nothing to transmit
*
* if you don't need to reply to HTTP requests,
* just define this function with a return(0) as single statement
*
*/
unsigned int Spi_Ethernet_UserTCP(unsigned char *remoteHost, unsigned int remotePort, unsigned int localPort, unsigned int reqLength)
{
unsigned int len = 0 ; // my reply length
unsigned char i ; // general purpose char

if(localPort != 80) // I listen only to web request on port 80
{
return(0) ;
}

// get 10 first bytes only of the request, the rest does not matter here
for(i = 0 ; i < 10 ; i++)
{
getRequest[i] = Spi_Ethernet_getByte() ;
}
getRequest[10] = 0 ;

if(memcmp(getRequest, httpMethod, 5)) // only GET method is supported here
{
return(0) ;
}

httpCounter++ ; // one more request done

if(getRequest[5] == 's') // if request path name starts with s, store dynamic data in transmit buffer
{
// the text string replied by this request can be interpreted as javascript statements
// by browsers

len = putConstString(httpHeader) ; // HTTP header
len += putConstString(httpMimeTypeScript) ; // with text MIME type

// add AN2 value to reply
intToStr(ADC_Read(2), dyna) ;
len += putConstString("var AN2=") ;
len += putString(dyna) ;
len += putConstString(";") ;

// add AN3 value to reply
intToStr(ADC_Read(3), dyna) ;
len += putConstString("var AN3=") ;
len += putString(dyna) ;
len += putConstString(";") ;

// add PORTB value (buttons) to reply
len += putConstString("var PORTB=") ;
intToStr(PORTB, dyna) ;
len += putString(dyna) ;
len += putConstString(";") ;

// add PORTD value (LEDs) to reply
len += putConstString("var PORTD=") ;
intToStr(PORTD, dyna) ;
len += putString(dyna) ;
len += putConstString(";") ;

// add HTTP requests counter to reply
intToStr(httpCounter, dyna) ;
len += putConstString("var REQ=") ;
len += putString(dyna) ;
len += putConstString(";") ;
}
else if(getRequest[5] == 't') // if request path name starts with t, toggle PORTD (LED) bit number that comes after
{
unsigned char bitMask = 0 ; // for bit mask

if(isdigit(getRequest[6])) // if 0 <= bit number <= 9, bits 8 & 9 does not exist but does not matter
{
bitMask = getRequest[6] - '0' ; // convert ASCII to integer
bitMask = 1 << bitMask ; // create bit mask
PORTD ^= bitMask ; // toggle PORTD with xor operator
}
}

if(len == 0) // what do to by default
{
len = putConstString(httpHeader) ; // HTTP header
len += putConstString(httpMimeTypeHTML) ; // with HTML MIME type
len += putConstString(indexPage) ; // HTML page first part
len += putConstString(indexPage2) ; // HTML page second part
}

return(len) ; // return to the library with the number of bytes to transmit
}

/*
* this function is called by the library
* the user accesses to the UDP request by successive calls to Spi_Ethernet_getByte()
* the user puts data in the transmit buffer by successive calls to Spi_Ethernet_putByte()
* the function must return the length in bytes of the UDP reply, or 0 if nothing to transmit
*
* if you don't need to reply to UDP requests,
* just define this function with a return(0) as single statement
*
*/
unsigned int Spi_Ethernet_UserUDP(unsigned char *remoteHost, unsigned int remotePort, unsigned int destPort, unsigned int reqLength)
{
unsigned int len ; // my reply length

// reply is made of the remote host IP address in human readable format
byteToStr(remoteHost[0], dyna) ; // first IP address byte
dyna[3] = '.' ;
byteToStr(remoteHost[1], dyna + 4) ; // second
dyna[7] = '.' ;
byteToStr(remoteHost[2], dyna + 8) ; // third
dyna[11] = '.' ;
byteToStr(remoteHost[3], dyna + 12) ; // fourth

dyna[15] = ':' ; // add separator

// then remote host port number
WordToStr(remotePort, dyna + 16) ;
dyna[21] = '[' ;
WordToStr(destPort, dyna + 22) ;
dyna[27] = ']' ;
dyna[28] = 0 ;

// the total length of the request is the length of the dynamic string plus the text of the request
len = 28 + reqLength;

// puts the dynamic string into the transmit buffer
Spi_Ethernet_putBytes(dyna, 28) ;

// then puts the request string converted into upper char into the transmit buffer
while(reqLength--)
{
Spi_Ethernet_putByte(toupper(Spi_Ethernet_getByte())) ;
}

return(len) ; // back to the library with the length of the UDP reply
}

/*
* main entry
*/
void main()
{
ADCON1 = 0x0B ; // ADC convertors will be used with AN2 and AN3
CMCON = 0x07 ; // turn off comparators

PORTA = 0 ;
TRISA = 0xff ; // set PORTA as input for ADC

PORTB = 0 ;
TRISB = 0xff ; // set PORTB as input for buttons

PORTD = 0 ;
TRISD = 0 ; // set PORTD as output

/*
* starts ENC28J60 with :
* reset bit on RC0
* CS bit on RC1
* my MAC & IP address
* full duplex
*/
Spi_Init();
Spi_Ethernet_Init(&PORTC, 0, &PORTC, 1, myMacAddr, myIpAddr, Spi_Ethernet_FULLDUPLEX) ;

// dhcp will not be used here, so use preconfigured addresses
SPI_Ethernet_confNetwork(ipMask, gwIpAddr, dnsIpAddr) ;

while(1) // do forever
{
/*
* if necessary, test the return value to get error code
*/
Spi_Ethernet_doPacket() ; // process incoming Ethernet packets

/*
* add your stuff here if needed
* Spi_Ethernet_doPacket() must be called as often as possible
* otherwise packets could be lost
*/
}
}

Ko vse skupaj priklopim nan napajanje, se modul prižge in, če ga priklopim na router nekaj utripa ... Z računalnika pingam 192.168.1.60, vrne pa mi request timeout.
Preveril sem že vse povezave, zamenjal SI/SO. Če pic z istim programom vstavim v easypic in na nj priklopim ethernet modul od mikroelektronike, vse deluje ok.
Sedaj sem na točki, ko ne vem kaj bi poskusil ...
Quarz je 20 MHz.


Opis:

Velikost datoteke:

171.77 KB

Pogledana:

30 krat


Opis:

Velikost datoteke:

33.11 KB

Pogledana:

10 krat

Nazaj na vrh

NUFAN
Član
Član

Pridružen-a: Pon 05 Apr 2004 21:39
Prispevkov: 947
Aktiv.: 4.00
Kraj: Žalec

Objavljeno: Sre Apr 11, 2012 8:46 pm Naslov sporočila:

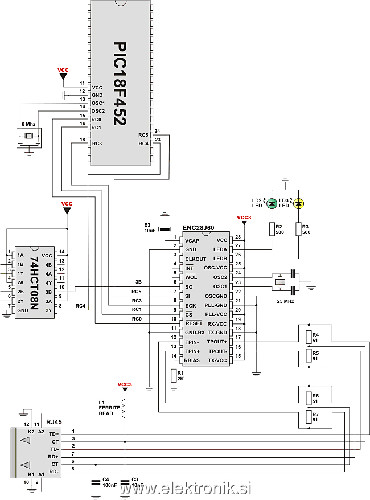

Kje imaš pa napajanje za ENC? Kot vidiš je shemi iz mikroelektronike uporabljen še čip 74HCT08.
Če prav vidim, v specifikacijah za ENC, mora biti oscilator 25 MHz.

Citiram:

The ENC28J60 is designed to operate at 25 MHz with
a crystal connected to the OSC1 and OSC2 pins.

_________________
Roke spadajo k telesu, ne k delu.

Nazaj na vrh
