Za potrebe servisejev isščem ročni osciloskop.
Same zahteve so zelo minimalne, predvsem pa je ključna robustnost.

Osciloskop naj ima sledeče karakteristike:

1 kanal (ok, mogoče dva kanala)
do 1 Msample/s
Ročna varianta

Potrebovali bi ga za analizo signalov na 485, rs232 vodilu (hitrosto do 110 kbs)
potem pa za analizo zvoka nekej do 30 khz

nekaj razmišljam o POSCOPE, ki pa je malo preštorast za na kakšno lestev.

Kaj predlagate?


lp
Grega

[protoncek]

Zamudil si tegale:
http://www.elektronik.si/phpBB2/viewtopic.php?t=14995&highlight=

[KrEn]

sem gledal,
samo jaz rabim malo več kosov in bolj profi... varianto.

[protoncek]

Hja, potem pa fluke itd...samo cena takih je pa

[bojans]

Poglej tukaj http://www.micom-electronics.si/index.php?option=com_virtuemart&page=shop.browse&category_id=131

[a.vidmar]

Micro digital storage oscilloscope-DSO nano

Mogoče pa ti bo ustrezal.

Cena je malenkostna 89 USD + carina + davek
So jih imeli 20 po 59 USD pa jih je zmanjkalo v 1/2 sekunde.
Naj bi bili na voljo od jutri naprej.

DSO nano is a pocket size digital storage oscilloscope fulfills basic electronic
engineering requirements. It is base on ARM Cortex™-M3 compatible 32 bit platform,
equipped with 320*240 color display, SD card capability, USB connection, and chargeable batteries.
Weighs only 60g!

Specification

Display 2.8″ Color TFT LCD
Display Resolution 320×240
Display Color 65K
Analog bandwidth 0 - 1MHz
Max sample rate 1Msps 12Bits
Sample memory depth 4096 Point
Horizontal sensitivity 1uS/Div～10S/Div (1-2-5 Step)
Horizontal position adjustable with indicator
Vertical sensitivity 10mV/Div～10V/Div (with ×1 probe)
0.5V/Div～10V/Div (with ×10 probe)
Vertical position adjustable with indicator
Input impedance >500KΩ
Max input voltage 80Vpp (by ×1 probe)
Coupling DC
Trig modes Auto, Norma, Single, None and Scan
Functionalities: Automatic measurement: frequency, cycle, duty, Vpp, Vram, Vavg and DC voltage
Precise vertical measurement with markers
Precise horizontal measurement with markers
Rising/falling edge trigger
Trig level adjustable with indicator
Trig sensitivity adjustable with indicator
Hold/run feature
Test signal Built-in 10Hz～1MHz (1-2-5 Step)
Waveform storage SD card
PC connection via USB as SD card reader
Upgrade by bootloader via USB
Power supply 3.7V Chargeable Lithium battery / USB
Dimension (w/o probe) 105mm X 53mm X 8mm

Document:

Manual download


Package list:

DSO nano body x 1
3.7v lithium battery with connector x 1
Back plate x 1
Mini Probe x 1
2G Mirco SD card x 1 (special offer for first 100 pioneering units only)



* Model: TOL114C3M
* Shipping Weight: 120 g

[a.vidmar]

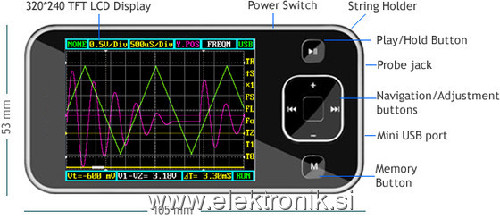

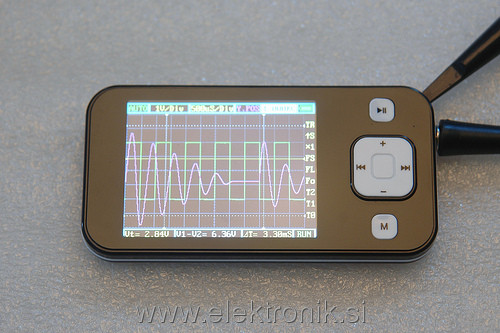

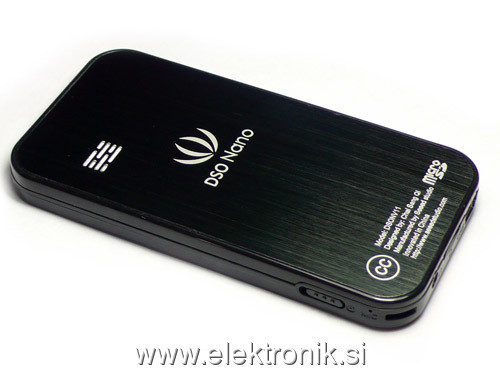

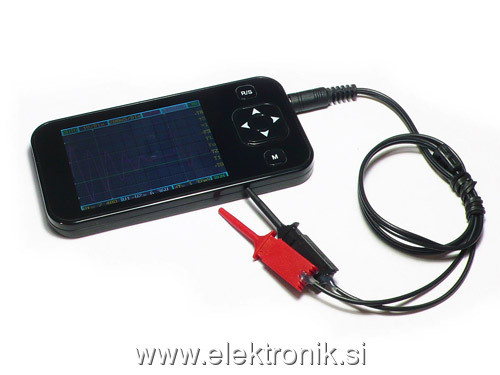

VIDEO kako deluje na youtube.

Pa še dve slikci.

LP


:>

[aly]

To meni izgleda kot en MP4 predvajalnik / recorder predelan v DSO
Vprašanje, kako je narejen analogni vhod...

Tudi tukaj je (bil) eden:
http://www.elektronik.si/phpBB2/viewtopic.php?p=143560

[ro-bi]

http://www.sjelectronics.co.uk/acatalog/GW_Instek_GDS122.html

[milan62]

[McBobo]

Zanima me, če kdo uporablja te ročne osciloskope in kako se obnesejo?
DSO nano - Pocket size digital storage oscilloscope
Zdaj je cena padla že na €49+carina+davek.

[mcride]

[JamesQ]

Lep pozdrav.

V tem dokumentu je nekje na koncu celotna shema. (=

Še njegov večji bratec. =D

LDŽ

[McBobo]

JYE Tech naj bi naredili novo verzijo naprej od DSO 062 DIY kit http://www.jyetech.com/Products/LcdScope/e062KC.php , DSO 082 http://www.jyetech.com/Products/LcdScope/e082.php .
Zanima me, katerega priporočate za elektronika začetnika, s katerim bi iskal napake-nedelujoče elemente v preprostih vezjih? Ali raje tega: DSO nano http://www.seeedstudio.com/depot/micro-digital-storage-oscilloscopedso-nano-p-512.html ?
